Military GPS

Features Military GPS

Displays PNT information similar to the Present Position screen of the AN/PSN-13 Defense Advanced GPS Receiver (DAGR).The user manual is available at thoughtbloc.com -> NAV GPS.All options are selectable using front panel buttons.

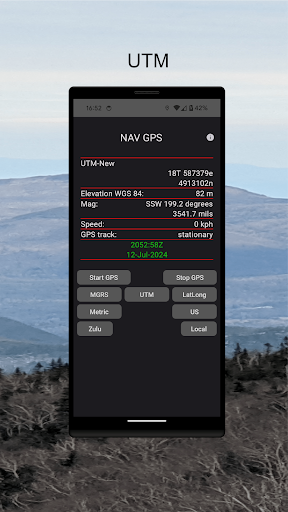

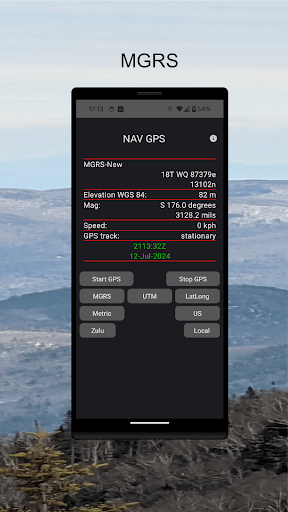

Available coordinate systems are MGRS, UTM and Latitude/Longitude.
Referto U.S.
Army Training Circular TC 3-25.26 MAP READING AND LANDNAVIGATION for details regarding coordinate systems.
Elevation is the altitude of the displayed location above the WGS 84 reference ellipsoid.
Refer to STANDARDIZATION DOCUMENT, DEPARTMENT OF DEFENSE WORLD GEODETIC SYSTEM 1984, Its Definition and Relationships with Local Geodetic Systems (NGA.STND.0036_1.0.0_WGS84), released by the OFFICE OF GEOMATICS, NATIONAL GEOSPATIAL-INTELLIGENCE AGENCY (NGA) for details regarding WGS 84.
Magnetic orientation is the device orientation relative to magnetic north.GPS Track is the direction between received coordinates as the device moves.Magnetic orientation and track are displayed in both degrees and mils.
Refer to U.S.
Army Training Circular TC 3-25.26 MAP READING AND LANDNAVIGATION for details regarding orientation and direction.
Elevation and speed are available in Metric and US units.
Time is available in both Zulu and local.
Defaults are MGRS, Metric and Zulu.
